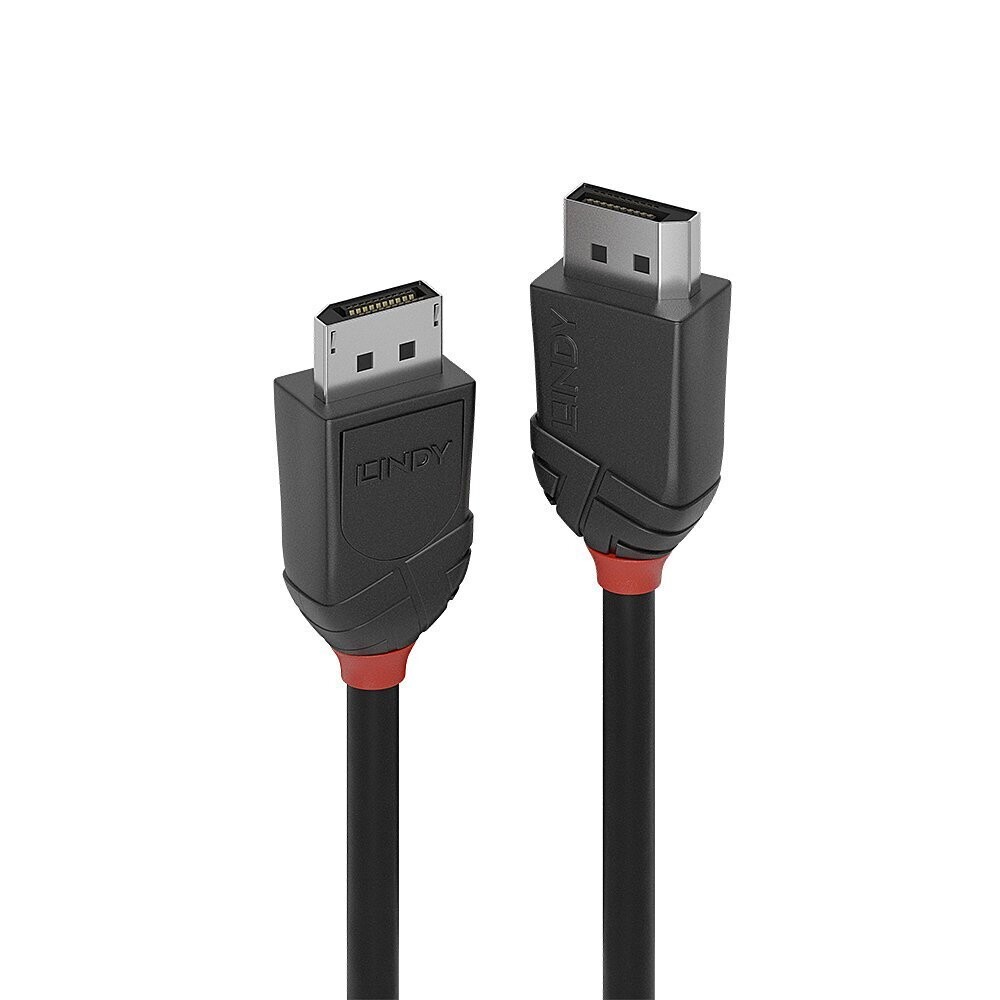

1.5m DisplayPort 1.2 Cable, Black Line DP Male to Male

• Entry level DisplayPort cable for home and small office applications
• Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
• Robust PVC housing, nickel connectors, 24K gold plated contacts
• Triple shielded cable, corrosion resistant copper 30AWG conductors
• DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

1.5m DisplayPort 1.2 Cable, Black Line

DP Male to Male

Connectors

• Connector A: DisplayPort Male
• Connector B: DisplayPort Male
• Housing Material: ABS
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 21.0x38.9x13.6mm (0.83x1.53x0.54in)

Cable Construction

• Length: 1.5m (4.92ft)
• Standard: DisplayPort 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 6mm (0.24in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 30AWG
• Shielding: Copper Braid 80%

Specifications

• Supported Bandwidth: 21.6Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
• Nominal Attenuation:
  • 300kHz-825MHz <5dB
  • 825MHz-2.475GHz <5dB
  • 2.475GHz-4.125GHz <12dB
  • 4.125GHz-5.1GHz <20dB
• Minimum Band Radius: 48mm (1.89in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• ATC Approved: -

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL
