Part of the Cisco Small Business Series of networking solutions,Cisco 100 Series Unmanaged Switches deliver wire-speed Fast Ethernet or Gigabit Ethernet connectivity to connect your small business office. These switches are designed to suit any office space and help optimize power efficiency. They provide long-term investment protection and support for advanced features like quality of service (QoS) - all in a switch that you can set up by yourself in just minutes.

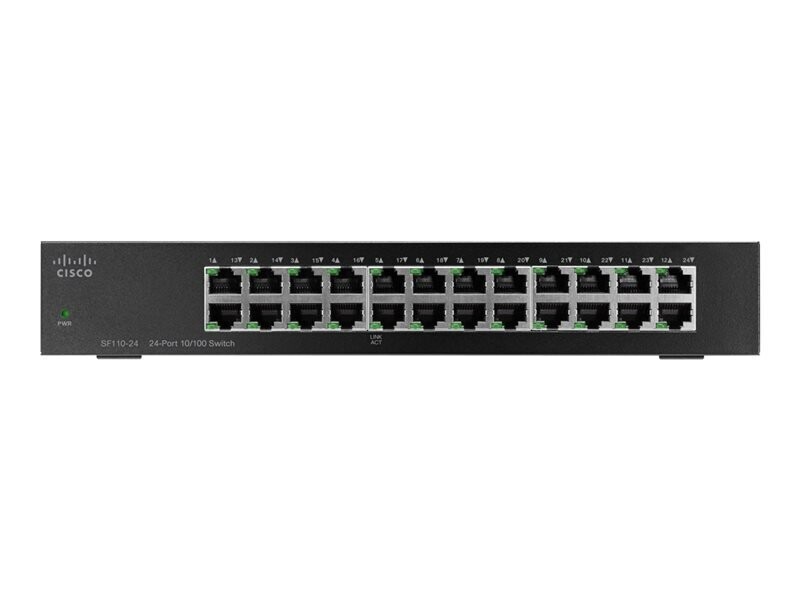

Product Description | Cisco Small Business SF110-24 - switch - 24 ports - unmanaged - rack-mountable |
Device Type | Switch - 24 ports - unmanaged |
Enclosure Type | Rack-mountable |
Subtype | Fast Ethernet |
Ports | 24 x 10/100 |
Performance | Switching capacity:4.8 Gbps ¦ Forwarding performance (64-byte packet size):3.6 Mpps |
Capacity | QoS hardware queues:4 |
Jumbo Frame Support | 9216 bytes |
Features | Quality of Service (QoS),Energy Efficient Ethernet,security lock slot (cable lock sold separately),cable test |
Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.1p,IEEE 802.3x,IEEE 802.3az |
Power | AC 120/230 V (50/60 Hz) |
Dimensions (WxDxH) | 27.94 cm x 17 cm x 4.45 cm |
Weight | 1.32 kg |
Localisation | United Kingdom |
Manufacturer Warranty | Limited lifetime warranty |
General | |
---|---|
Device Type | Switch - 24 ports - unmanaged |
Enclosure Type | Desktop,rack-mountable |
Subtype | Fast Ethernet |
Ports | 24 x 10/100 |
Performance | Switching capacity:4.8 Gbps Forwarding performance (64-byte packet size):3.6 Mpps |
Capacity | QoS hardware queues:4 |
Jumbo Frame Support | 9216 bytes |
Features | Quality of Service (QoS),Energy Efficient Ethernet,security lock slot (cable lock sold separately),cable test |
Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.1p,IEEE 802.3x,IEEE 802.3az |
RAM | 128 MB |
Flash Memory | 128 MB |
Status Indicators | System,link/activity |
Expansion / Connectivity | |
---|---|
Interfaces | 24 x 100Base-TX RJ-45 |
Power | |
---|---|
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
---|---|
Compliant Standards | UL 60950,FCC CFR47 Part 15,CSA 22.2 |
Localisation | United Kingdom |
Dimensions &Weight | |
---|---|
Width | 27.94 cm |
Depth | 17 cm |
Height | 4.45 cm |
Weight | 1.32 kg |
Manufacturer Warranty | |
---|---|
Service &Support | Limited warranty - lifetime |
Environmental Parameters | |
---|---|
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 90% (non-condensing) |
