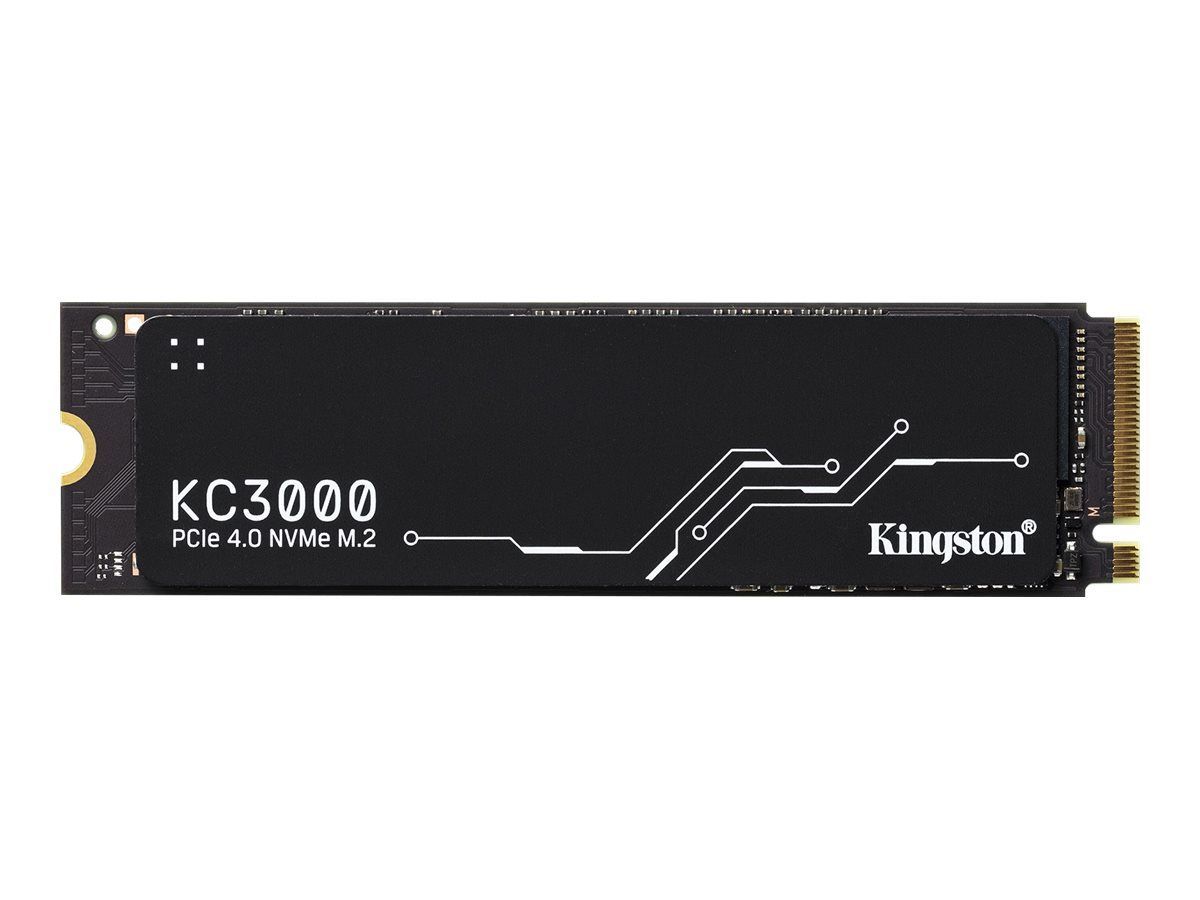

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the Gen 4x4 NVMe controller and 3D TLC NAND. Adjust the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require extremely fast speeds.
The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and faster loading times.
Product Description | Kingston KC3000 - SSD - 512 GB - PCIe 4.0 (NVMe) |
Type | Solid state drive - internal |
Capacity | 512 GB |
NAND Flash Memory Type | 3D triple-level cell (TLC) |
Form Factor | M.2 2280 |
Interface | PCIe 4.0 (NVMe) |
Features | NVM Express (NVMe), Phison E18 controller |
Dimensions (WxDxH) | 22 mm x 80 mm x 2.21 mm |
Weight | 7 g |
Manufacturer Warranty | 5-year warranty |
Designed For | Intel Next Unit of Computing 12 Pro Kit - NUC12WSKi5 |
PCIe 4
0 NVMe Technology. Master intensive applications with high read/write speeds.
Store more
Improve and manage storage with high capacity.
Greater flexibility
Compact M. 2 design fits easily into small-form-factor (SFF) systems, desktops and laptop PCs.
Low profile graphene aluminum heat spreader
Exceptional thermal dissipation keeps your drive cool with maximum performance.
Depth | 80 mm
|
Weight | 7 g
|
Width | 22 mm
|
Capacity | 512 GB
|
Device Type | Solid state drive - internal
|
Height | 2.21 mm
|
Form Factor | M.2 2280
|
NAND Flash Memory Type | 3D triple-level cell (TLC)
|
Features | NVM Express (NVMe), Phison E18 controller
|
Interface | PCIe 4.0 (NVMe)
|
Service & Support | Limited warranty - 5 years
|
Power Consumption | 5 mW (idle)
0.34 Watt (average)
2.7 Watt (read)
4.1 Watt (write)
|
Min Operating Temperature | 0 °C
|
Max Operating Temperature | 70 °C
|
Min Storage Temperature | -40 °C
|
Max Storage Temperature | 85 °C
|
Vibration Tolerance (operating) | 2.17 g @ 7-800 Hz
|
Vibration Tolerance (non-operating) | 20 g @ 20-1000 Hz
|
SSD Endurance | 400 TB
|
4KB Random Read | 450000 IOPS
|
4KB Random Write | 900000 IOPS
|
Internal Data Rate | 7000 MBps (read) / 3900 MBps (write)
|
MTBF | 1,800,000 hours
|
Designed For | Intel Next Unit of Computing 12 Pro Kit - NUC12WSKi5
|
Compatible Bay | M.2 2280
|
Interfaces | 1 x PCI Express 4.0 (NVMe) - M.2 Card
|
