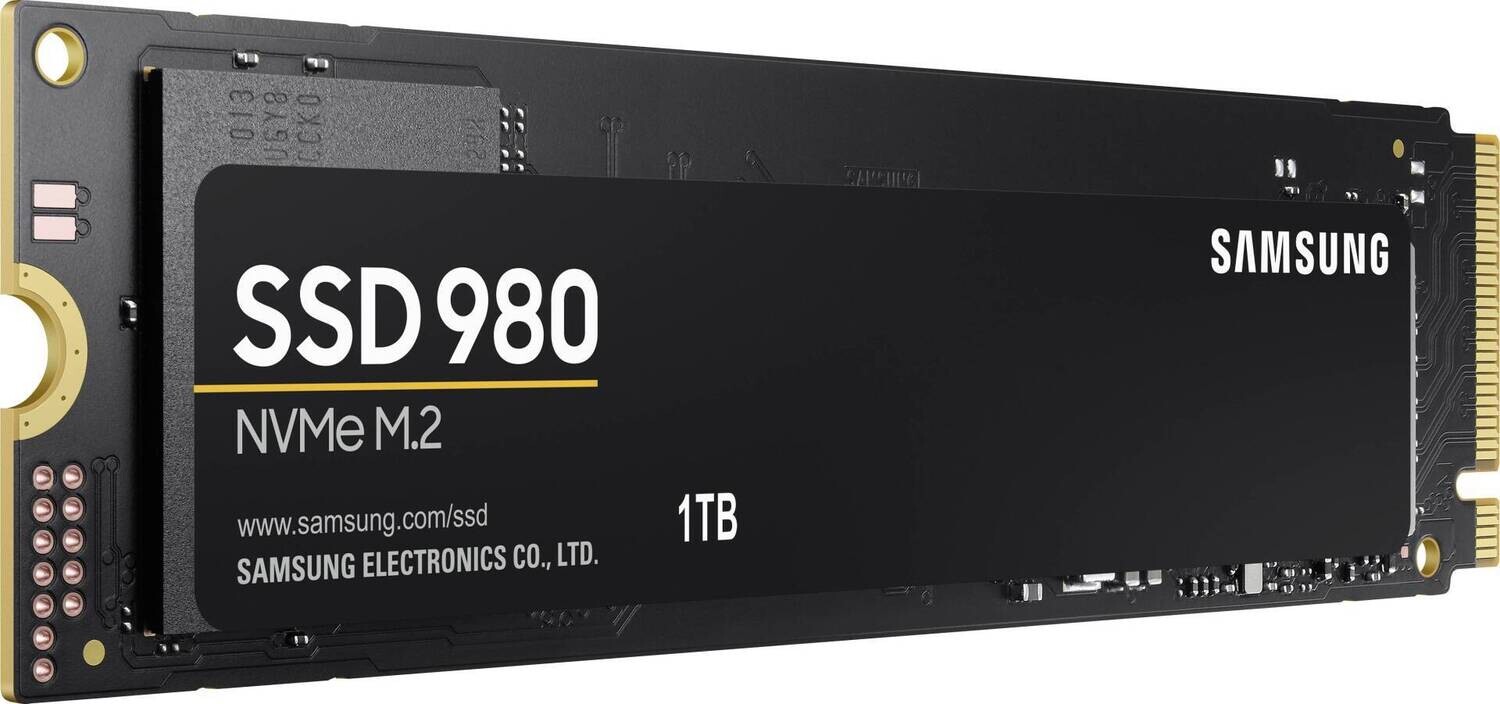

Samsung 980 1 TB NVMe/PCIe M.2 internal SSD M.2 NVMe PCIe 3.0 x4 Retail MZ-V8V1T0BW

Product type NVMe/PCIe M.2 internal SSD

Series 980

Form factor M.2 Module 2280

Interfaces M.2 NVMe PCIe 3.0 x4

Memory capacity 1 TB

Reading 3500 MBps

Writing 3000 MBps

IOPS read speed (max.) 500000 IOPS

IOPS write speed (max.) 480000 IOPS

Design height 2.38 mm

TBW (Total bytes written) 600 TB

Width 22 mm

Height 2.38 mm

Depth 80 mm

Type Retail

Operating temperature range 0 up to 70 °C

Memory size (rounded) 1 TB

Max. operating temperature 70 °C

Operating temperature (min.) 0 °C

Documents & Downloads

Data sheets (1)

A smart choice for NVMe performance

Performance power for smooth gaming and large graphics: The SSD 980 offers your computer a lot of performance and speed thanks to PCIe 3.0 interface and NVMe technology. It enables sequential read and write speeds of up to 3,500 or 3,000 MB/s¹ and is thus up to 6 times faster than a Samsung SATA SSD.² you get plenty of power for graphics-intensive games or large files. The SSD 980 offers you a high potential of NVMe performance with low power consumption. For constant performance, you can also rely on a stable temperature level, which is regulated by a nickel coating, a heat spreader and the Dynamic Thermal Guard technology. This is made possible by specially developed technologies such as the modern controller, V-NAND flash memory as well as the latest firmware. Another performance tip: Samsung Magician software lets you get a lot out of your SSD 980 thanks to various functions, such as full power mode.

Highlights & Details

1 TB

Sequential data transfer rates of up to 3.500 MB/s read or 3.000 MB/s schreibend¹

Interface: PCIe 3.0

Type M.2 (2280)

Facts

Intelligent TurboWrite 2.0 write buffer with up to 160 GB dynamic memory For high write performance

Supports Full power mode for highest possible performance at lower Latency

High security thanks to AES 256-bit hardware encryption.

Comments

Performance may vary depending on SSD firmware version, system hardware, and configuration. Sequential performance was measured using TurboWrite technology and IOmeter 1.1.0. Sequential write speeds outside the Intelligent TurboWrite range: Up to 250MB/s (GB), up to 500MB/s (GB), up to 900MB/s (1TB). Test System Configuration: Intel® Core™ i7-6700K CPU@ 4.00 GHz, DDR4 2133 MHz 8 GB x 2, OS-Windows 10 Pro 64 Bit, ASRock Z-170 Extreme 7+.

² Performance comparisons refer to Samsung SATA SSDs.

³ TBW = Terabytes Written. Total insured data: 150 TBW for the 250 GB model, 300 TBW for the 500 GB model and 600 TBW for the 1 TB model.
