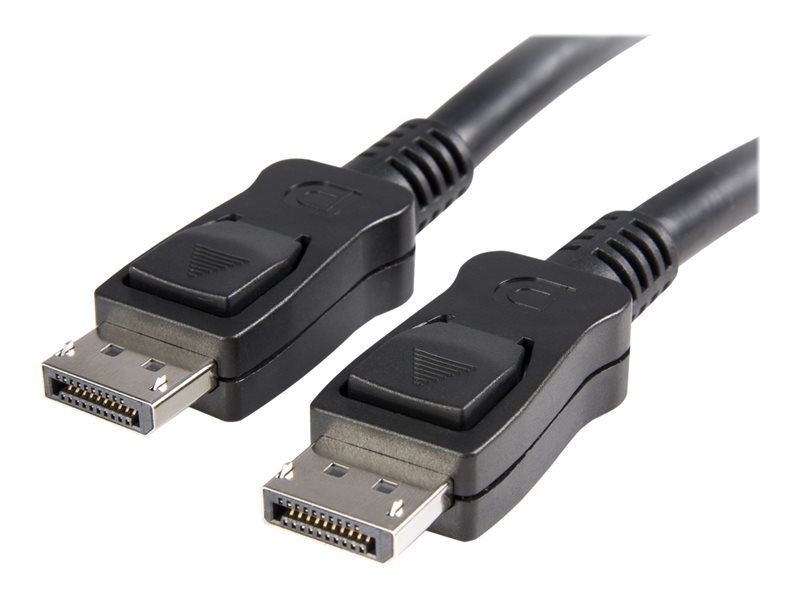

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort -equipped devices. The DISPL2M 2m DisplayPort 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI or dual link DVI.
The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
Main Specification
|
Associated Documents |
General | |
---|---|
Type | DisplayPort cable |
Technology | Shielded |
Shielding Material | Aluminum mylar foil with braid |
American Wire Gauge (AWG) | 28 |
Plated Connector | Nickel |
Features | Latched |
Length | 2 m |
Colour | Black |
Connectivity | |
---|---|
Connector | 20 pin DisplayPort - male |
Connector (Second End) | 20 pin DisplayPort - male |
Miscellaneous | |
---|---|
Compliant Standards | RoHS |
Manufacturer Warranty | |
---|---|
Service & Support | Limited lifetime warranty |
