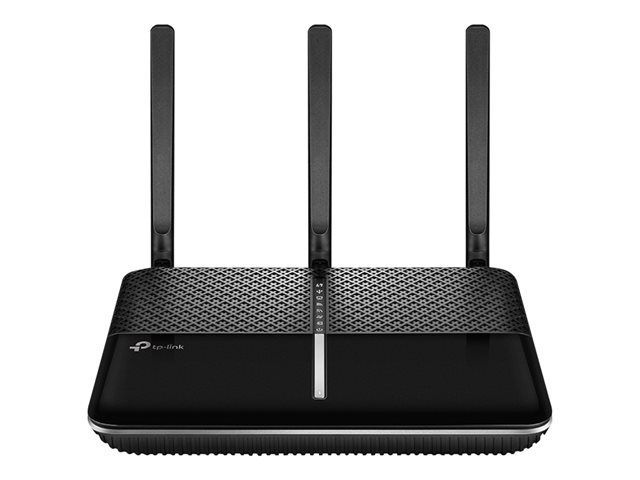

TP-Link Archer VR2100 - wireless router - DSL modem - Wi-Fi 5 - desktop
The Archer VR2100 is built to connect you to the internet, no matter your situation. The Ethernet WAN port supports wired connection to cable or fiber modem, letting you take full charge of its wireless capabilities as a router. In case your internet goes down, attach a 3/4G adapter to USB 3.0 port to serve as a backup option so you can get back online in no time.
| Product Description | TP-Link Archer VR2100 - wireless router - DSL modem - Wi-Fi 5 - desktop |
| Features | NAT support, SPI, ALG support, parental control, firmware upgradable, ATM, QoS, WPS, port forwarding, reset button, port triggering, IP-MAC binding, DoS, SYN Flooding, Ping of Death, beamforming technology, 4x4 MU-MIMO technology, PPP |
| Dimensions (WxDxH) | 21.6 cm x 16.4 cm x 3.68 cm |
| System Requirements | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7, Windows 8 / 8.1 / 10 |
| Device Type | Wireless router - DSL modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Capacity | IPSec VPN tunnels: 10 |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, ICMP/IP, IPSec, DHCP, DDNS |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS, CLI, TR-069 |
| Digital Signaling Protocol | ADSL, ADSL2, ADSL2+, VDSL2 |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3 |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 1733 Mbps |
| WAN Ports Qty | 2 |
Enjoy the network at full speed
The Archer VR2100 makes full use of its dual band Wi-Fi abilities, reaching speeds of up to 1773 Mbps on 5 GHz band and 300 Mbps on 2. 4 GHz band. Enjoy a total speed of up to 2. 1 Gbps to eliminate latency and buffering from your HD streams and lag from online games.
4×4 MU-MIMO - efficient Wi-Fi for every device
MU-MIMO technology serves up to four devices at once, reducing wait time, increasing Wi-Fi throughput for every device, and making each stream more efficient.
Supports TP-Link OneMesh for whole-home coverage
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
Lightning-fast wired connections
One USB 3. 0 port provides data transfers up to 10× faster than a traditional USB 2. 0 port. Connect external storage devices and share files, photos, and videos at high-speed. As well as 4 Gigabit LAN ports help wired devices achieve peak performance for HD streaming and gaming.
TP-Link Archer VR2100
Network cable
Modem cable
External power adapter, ADSL splitter
| Enclosure Type | Desktop
|
| Connectivity Technology | Wireless, wired
|
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
|
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3
|
| Device Type | Wireless router - 4-port switch (integrated)
|
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
|
| Frequency Band | 2.4 GHz / 5 GHz
|
| Capacity | IPSec VPN tunnels: 10
|
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS, CLI, TR-069
|
| Performance | Maximum data rate (2.4 GHz): 300 Mbps
Maximum data rate (5 GHz): 1733 Mbps
|
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, ICMP/IP, IPSec, DHCP, DDNS
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, RoHS, RCM
|
| Status Indicators | Power, LAN, USB, WPS, Internet, DSL, 2.4/5 GHz
|
| Features | NAT support, SPI, ALG support, parental control, firmware upgradable, ATM, QoS, WPS, port forwarding, reset button, port triggering, IP-MAC binding, DoS, SYN Flooding, Ping of Death, beamforming technology, 4x4 MU-MIMO technology, PPP
|
| Interfaces | LAN: 3 x 10Base-T/100Base-TX - RJ-45
WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB 3.0: 1 x 9 pin USB Type A
Phone line: 1 x VDSL / ADSL2+ - RJ-11
|
| Cables Included | 1 x network cable
1 x modem cable
|
| Included Accessories | ADSL splitter
|
| Power Device | External power adapter
|
| OS Required | UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7, Windows 8 / 8.1 / 10
|
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 40 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
| Type | DSL modem
|
| Digital Signaling Protocol | ADSL, ADSL2, ADSL2+, VDSL2
|
| Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ITU G.992.3 (G.DMT.bis), ITU G.992.5, ITU G.993.2, ITU G.998.4, ITU G.993.5
|
| Width | 21.6 cm
|
| Depth | 16.4 cm
|
| Height | 3.68 cm
|
| Antenna Qty | 4
|
| Aerial | External detachable and internal
|
| Framing Format | ANSI T1.413i2
|
