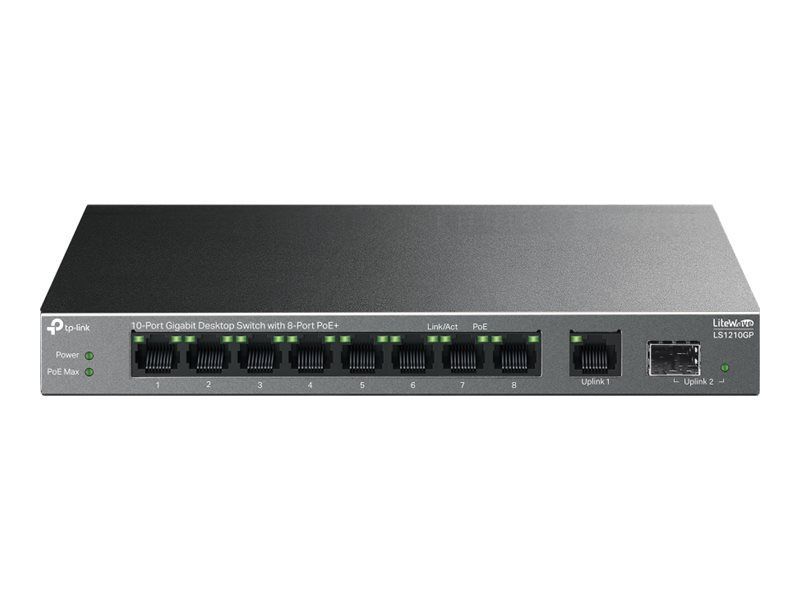

TP-Link LiteWave LS1210GP V1
The TP-Link LiteWave LS1210GP V1 is a high-performance switch designed to meet the demands of modern networks. With its 20 Gbps switching capacity and 14.88 Mpps forwarding performance, it efficiently manages network traffic, ensuring smooth and reliable data transmission. This switch is equipped with 8 PoE+ ports, a Gigabit SFP port, and two additional 10/100/1000 Base-T ports, offering versatile connectivity options for various devices while supporting high-speed data and power over Ethernet simultaneously.
Built for durability and silent operation, the TP-Link LiteWave LS1210GP V1 features a metal housing and operates without fans, making it suitable for any environment. Its robust environmental parameters allow for efficient operation in temperatures ranging from 0°C to 40°C. Advanced networking features such as IGMP snooping, DSCP based QoS, and long-range PoE+ up to 250m, alongside automatic address aging and client isolation, provide enhanced network management and security. Compliant with FCC, Plug-and-Play, and RoHS standards, this switch offers easy installation and maintenance, ensuring a hassle-free setup and operation with minimal environmental impact.
| Product Description | TP-Link LiteWave LS1210GP V1 - switch - 10 ports |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, fanless, security lock slot (cable lock sold separately), metal housing, client isolation, extend mode, Green Technology, DSCP based QoS, PoE Auto Recovery, long range PoE+ up to 250m, automatic address aging |
| Dimensions (WxDxH) | 20.9 cm x 12.6 cm x 2.6 cm |
| Device Type | Switch - 10 ports |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Routing Protocol | IGMP |
| Performance | Switching capacity: 20 Gbps ¦ Forwarding performance: 14.88 Mpps |
| Power Over Ethernet (PoE) | PoE+ |
| MAC Address Table Size | 4K entries |
| Ports | 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP |
| Jumbo Frame Support | 16KB |
| PoE Budget | 61 W |
| Subtype | Gigabit Ethernet |
Robust performance
With a switching capacity of 20 Gbps and forwarding performance of 14. 88 Mpps, this switch ensures efficient handling of network traffic, minimizing bottlenecks for smooth and reliable data transmission.
Enhanced connectivity
Equipped with 8 PoE+ ports, a Gigabit SFP port, and two additional 10/100/1000 Base-T ports, the TP-Link LiteWave LS1210GP V1 offers versatile connectivity options for a wide range of devices, supporting high-speed data and power over Ethernet simultaneously.
Durable and reliable
Designed with a metal housing and fanless operation, this switch is built for durability and silent performance, making it suitable for any environment. Its robust environmental parameters ensure it operates efficiently from 0°C up to 40°C.
Advanced networking features
Features such as IGMP snooping, DSCP based QoS, and long-range PoE+ up to 250m, alongside automatic address aging and client isolation, provide enhanced network management and security, ensuring optimal performance and reliability.
Easy installation and maintenance
Compliant with FCC, Plug-and-Play, and RoHS standards, this switch is easy to install and maintain, offering a hassle-free setup and operation with minimal environmental impact.
| MAC Address Table Size | 4K entries
|
| Subtype | Gigabit Ethernet
|
| Routing Protocol | IGMP
|
| Power Over Ethernet (PoE) | PoE+
|
| PoE Budget | 61 W
|
| Device Type | Switch - 10 ports
|
| Jumbo Frame Support | 16KB
|
| Enclosure Type | Desktop, wall-mountable
|
| Performance | Switching capacity: 20 Gbps
Forwarding performance: 14.88 Mpps
|
| Ports | 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP
|
| Status Indicators | Power, link/activity, PoE max, PoE activity
|
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
|
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, fanless, security lock slot (cable lock sold separately), metal housing, client isolation, extend mode, Green Technology, DSCP based QoS, PoE Auto Recovery, long range PoE+ up to 250m, automatic address aging
|
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
1 x 10/100/1000 Base-T RJ-45
1 x 1000Base-X SFP
|
| Compliant Standards | Plug and Play, FCC, RoHS
|
| Power Device | External power adapter
|
| Power Provided | DC 53.5 V - 1.31 A
|
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 40 °C
|
| Max Storage Temperature | 70 °C
|
| Min Storage Temperature | -40 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
| Humidity Range Storage | 5 - 90% (non-condensing)
|
| Height | 2.6 cm
|
| Depth | 12.6 cm
|
| Width | 20.9 cm
|
