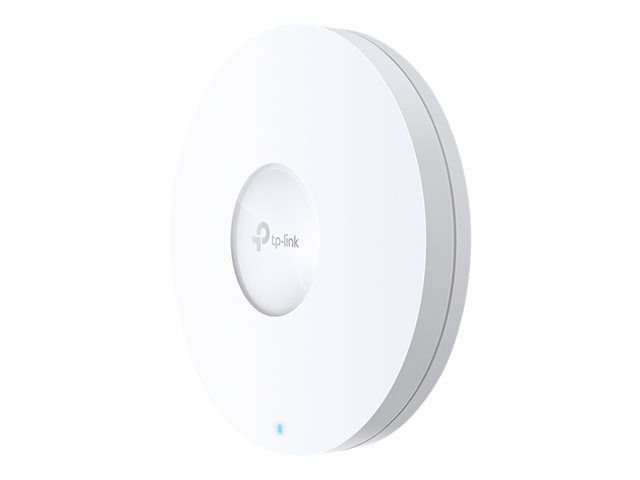

TP-Link Omada - radio access point - Wi-Fi 6 - cloud-managed AX1800
| Product Description | TP-Link Omada - radio access point - Wi-Fi 6 - cloud-managed |
| Form Factor | Wall / ceiling mountable |
| Dimensions (WxDxH) | 24.3 cm x 24.3 cm x 6.4 cm |
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Device Type | Radio access point |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Capacity | Maximum number of configured SSIDs: 16 |
| Frequency Band | 2.4 GHz, 5 GHz |
| Included Accessories | Wall/ceiling mounting kit |
| Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps |
| Power Over Ethernet (PoE) Supported | PoE+ |
Upgrade to WiFi 6, power up your business
WiFi 6 brings faster speeds, less lag, and higher capacity.
Superior WiFi 6 speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5. Every application feels more fluid with drastically improved Wi-Fi speeds.
Seamless integration into Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network - all controlled from a single interface.
Easy deployment & higher performance by Omada Mesh - easy pairing, less wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized network performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always stay smooth with fast roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
TP-Link EAP610
External power adapter
Wall/ceiling mounting kitExtended Specification
| Height | 6.4 cm
|
| Width | 24.3 cm
|
| Depth | 24.3 cm
|
| Device Type | Radio access point
|
| Interfaces | 1 x 1000Base-T (PoE+) - RJ-45
|
| Connectivity Technology | Wireless
|
| Cloud-Managed | Yes
|
| Status Indicators | Status
|
| Frequency Band | 2.4 GHz, 5 GHz
|
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH
|
| Capacity | Maximum number of configured SSIDs: 16
|
| Spread Spectrum Method | OFDMA
|
| Form Factor | Wall / ceiling mountable
|
| Line Coding Format | OFDM, 1024 QAM, OFDMA
|
| Wi-Fi Rating | AX1800
|
| Performance | Maximum data rate (2.4 GHz): 574 Mbps
Maximum data rate (5 GHz): 1201 Mbps
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
|
| Encryption Algorithm | WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
|
| Features | VLAN support, Syslog support, E-mail alert, MAC address filtering, Mesh networking, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, rogue access point detection, Captive Portal, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, rate limit, Wireless Scheduler, Software Defined Networking (SDN), LED on/off button, Fast Roaming, seamless roaming, Airtime Fairness, schedule reboot, load balance network mode, Guest Network
|
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
|
| Compliant Standards | FCC, RoHS
|
| Included Accessories | Wall/ceiling mounting kit
|
| Power Over Ethernet (PoE) Supported | PoE+
|
| Power Device | External power adapter
|
| OS Required | Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
|
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 40 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
| Antenna | Internal
|
| Directivity | Omni-directional
|
