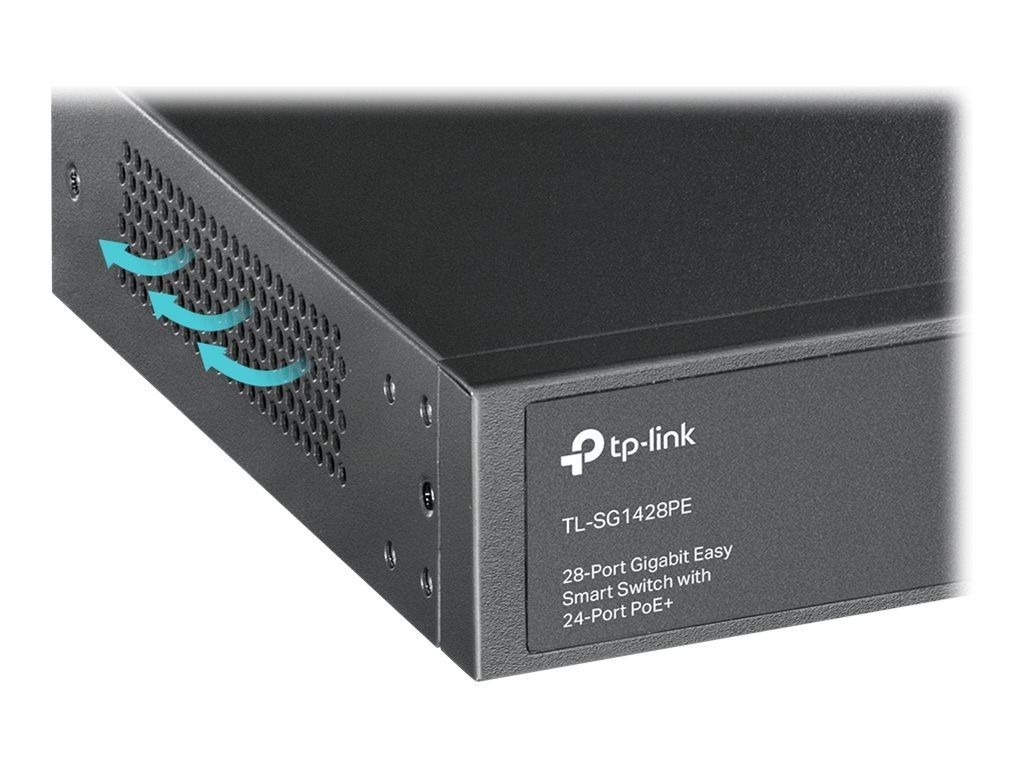

TP-Link TL-SG1428PE - switch - 28 ports, 24 X poe, smart - rack-mountable
€270.00
Sold out
Product Details
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Main Specification
| Product Description | TP-Link TL-SG1428PE - switch - 28 ports - smart - rack-mountable |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, Cable Diagnostics Function, loop prevention, security lock slot (cable lock sold separately), DSCP support, 2 fans, Storm Control, Static Link Aggregation, DSCP prioritisation |
| Dimensions (WxDxH) | 44 cm x 22 cm x 4.4 cm |
| Power | AC 100 - 240 V (50/60 Hz) |
| Device Type | Switch - 28 ports - smart |
| Enclosure Type | Rack-mountable 1U |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at |
| Capacity | Packet buffer size: 4.1 Mbit |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Performance | Switching capacity: 56 Gbps ¦ Forwarding performance: 41.7 Mpps |
| Power Over Ethernet (PoE) | PoE+ |
| MAC Address Table Size | 8K entries |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 |
| Jumbo Frame Support | 9KB |
| PoE Budget | 250 W |
| Subtype | Gigabit Ethernet |
Associated Documents
- Extended Specification
General
| Subtype | Gigabit Ethernet
|
| MAC Address Table Size | 8K entries
|
| Routing Protocol | IGMPv2, IGMP, IGMPv3
|
| PoE Budget | 250 W
|
| Enclosure Type | Rack-mountable 1U
|
| Power Over Ethernet (PoE) | PoE+
|
| Jumbo Frame Support | 9KB
|
| Device Type | Switch - 28 ports - smart
|
| Performance | Switching capacity: 56 Gbps
Forwarding performance: 41.7 Mpps
|
| Capacity | Packet buffer size: 4.1 Mbit
|
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at
|
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS, Cable Diagnostics Function, loop prevention, security lock slot (cable lock sold separately), DSCP support, 2 fans, Storm Control, Static Link Aggregation, DSCP prioritisation
|
Expansion / Connectivity
| Expansion Slots | 2 (total) / 2 (free) x SFP (mini-GBIC)
|
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
2 x 10/100/1000 Base-T RJ-45
|
Miscellaneous
| Rack Mounting Kit | Included
|
| Included Accessories | Rubber feet
|
| Compliant Standards | FCC, RoHS
|
Power
| Power Device | Internal power supply
|
| Voltage Required | AC 100 - 240 V (50/60 Hz)
|
| Power Consumption Operational | 304.7 Watt
|
Environmental Parameters
| Min Operating Temperature | 0 °C
|
| Max Operating Temperature | 50 °C
|
| Max Storage Temperature | 70 °C
|
| Min Storage Temperature | -40 °C
|
| Humidity Range Operating | 10 - 90% (non-condensing)
|
| Humidity Range Storage | 5 - 90% (non-condensing)
|
Dimensions & Weight
| Width | 44 cm
|
| Depth | 22 cm
|
| Height | 4.4 cm
|
