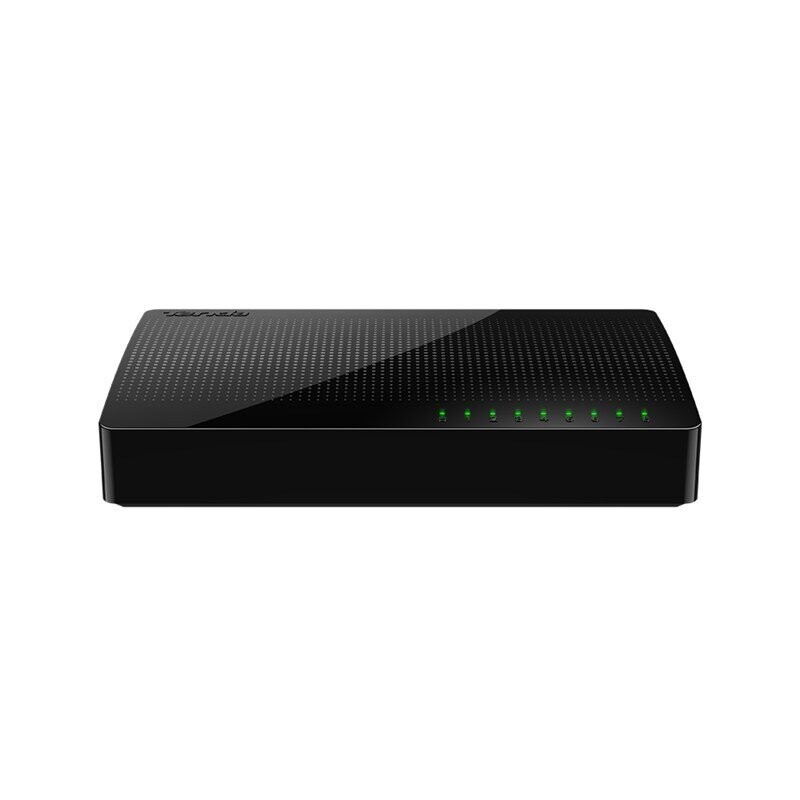

Tenda SG108 Network Switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Tenda SG108 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
| Manufacturer: | Tenda |
| Category: | Networking |
| Sub-Category: | Network Switches |
| SKU: | SG108 |
| EAN: | 0885397270713 6932849431179 0712396688853 |
Description
SG108 is a 8-Port Gigabit Desktop SOHO switch. It provides 8 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.
– 8x 10/100/1000Mbps auto-negotiation ports
– Auto MDI/MDIX simplifies networking and maintenance
– Full wire speed forwarding ensures a smooth network experience
– Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked
– Adopts store-and-forward mechanism and provides 4K MAC address table
– 9K Jumbo frame improves the forwarding speed of large data
– Adopts green and environmental ABS material, improving heat resistance and heat dissipation
– Allows IP camera accessing and provides a running and clear image
– Desktop and wall mounting simplify installation
Specifications
| Power | |
|---|---|
| Power connector | DC-in jack |
| Power consumption (max) | 5.5 W |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Networking | |
| Networking standards | IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 °C |
| Storage relative humidity (H-H) | 5 – 90% |
| Operating temperature (T-T) | 0 – 45 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 90 mm |
| Height | 24 mm |
