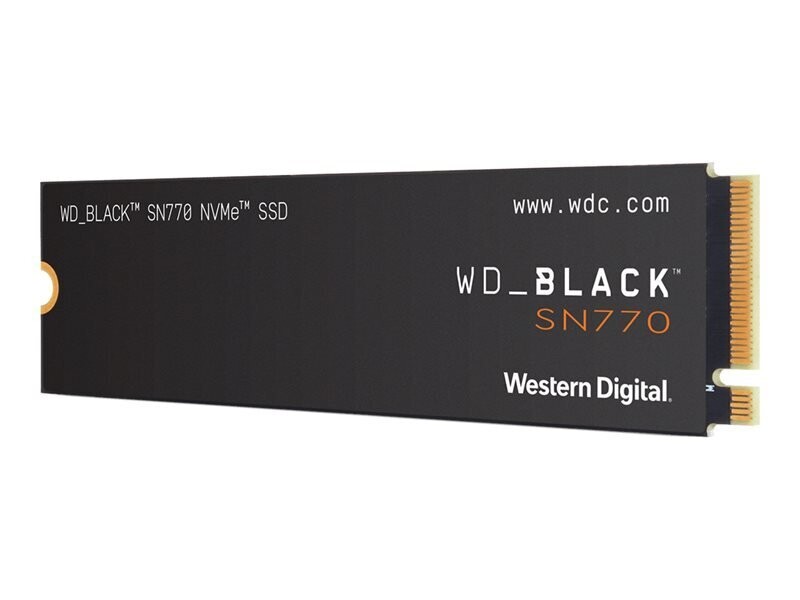

WD_BLACK SN770 WDS100T3X0E 1tb NVMe
Product Description
- English
Get ready to game even faster with the WD BLACK SN770 NVMe SSD. Zoom past load times and get into the action now with a purpose-built gaming drive that boasts up to 40% faster performance and up to 20% more power efficiency at maximum speed over the previous generation. The PCIe Gen4 interface is compatible with leading CPU and motherboard platforms,is backwards-compatible with PCIe Gen 3,and delivers blazing speeds of up to 5,150MB/s. That means less time waiting and more time playing and streaming your favorite titles. With capacities up to 2TB,you can store more of those games and have space left over for future updates and downloadable content. All this performance comes packaged in a reliable SSD designed and built specifically for gamers like you.
Main Specification
| Product Description | WD_BLACK SN770 WDS100T3X0E - SSD - 1 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Dimensions (WxDxH) | 22 mm x 80 mm x 2.38 mm |
| Weight | 5.5 g |
| Manufacturer Warranty | 5-year warranty |
Associated Documents
Product Features
- First into the action
- Get into the match fast as you zoom past load times with blazing speeds of up to 5,150MB/s.
- Smoother,faster gaming
- Improve in-game responsiveness and streaming with the PCIe Gen4 interface for a performance boost you can see and feel. The interface is compatible with leading CPU and motherboard platforms and backwards-compatible with PCIe Gen3.
- Store more
- Available in capacities up to 2TB,the WD BLACK SN770 NVMe SSD gives you tons of storage for your latest games with space left over for future updates and downloadable content.
- Turbocharge your laptop
- Get up to 20% more power efficiency at maximum speed over the previous generation for an even better overall gaming experience on your portable rig.
- Game longer and better
- Optimize peak performance in gaming mode and monitor your drive's health with the WD BLACK Dashboard so you can game with confidence.
Extended Specification collapse
| General | |
|---|---|
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 5.5 g |
| Performance | |
|---|---|
| SSD Endurance | 600 TB |
| Internal Data Rate | 5150 MBps (read) / 4900 MBps (write) |
| Maximum 4KB Random Write | 800000 IOPS |
| Maximum 4KB Random Read | 740000 IOPS |
| Reliability | |
|---|---|
| MTBF | 1,750,000 hours |
| Expansion &Connectivity | |
|---|---|
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
| Power | |
|---|---|
| Power Consumption | 65 mW (average) 3.3 mW (sleep) 5 Watt (maximum) |
| Miscellaneous | |
|---|---|
| Compliant Standards | UL,TUV,VCCI,BSMI,FCC,KCC,RCM,Morocco,CAN ICES-3(B)/NMB3(B) |
| Dimensions &Weight (Shipping) | |
|---|---|
| Shipping Width | 10.2 cm |
| Shipping Depth | 2.2 cm |
| Shipping Height | 12.7 cm |
| Shipping Weight | 40.82 g |
| Manufacturer Warranty | |
|---|---|
| Service &Support | Limited warranty - 5 years |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 85 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
