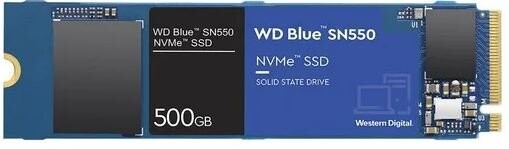

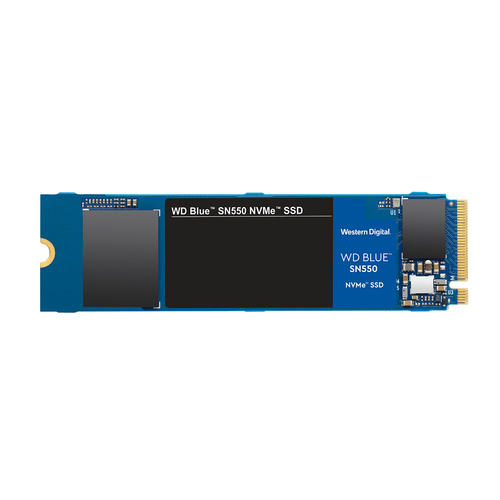

Western Digital WD Blue SN550 NVMe M.2 500 GB PCI Express 3.0 3D NAND
€83.00
Sold out
Product Details
Product Details
- Western Digital WD Blue SN550 NVMe M.2 500 GB PCI Express 3.0 3D NAND
Western Digital WD Blue SN550 NVMe M.2 500 GB PCI Express 3.0 3D NAND
Brand:
Western Digital
Product name:
WD Blue SN550 NVMe
Product code:
WDS500G2B0C
EAN/UPC code:
0718037868752
- Over 4x faster than our SATA SSDs with read speeds up to 2,400 MB/s for ultra-responsive PC performance
- Boost your system’s performance with next-gen NVMe™ SSDs
- Slimline M.2 2280 form factor
- Western Digital designed controller and firmware for optimized performance
- Western Digital SSD Dashboard constantly monitors the health of your SSD
Marketing text
Drive Performance Beyond SATA
The WD Blue™ NVMe™ SSD family boosts performance immensely over our high-end SATA SSDs with lightning-fast, ultra-responsive performance. The WD Blue NVMe SSD family allows resellers, system builders and consumers to take advantage of our reliable NVMe storage solution when creating their next PCs. Available in capacities up to 1TB in an M.2 2280 form factor, the WD Blue NVMe SSD family will give your system the boost you need.
Fast
Get breakneck sequential read speeds up to 2,400 MB/s to improve your productivity no matter what you’re doing or creating
Low Power
Enables a low power draw while maintaining significantly higher performance over our SATA SSD
Reliable
Our in-house controller and 3D NAND supports the PCIe® NVMe™ interface and DRAM-less configurations
Specs
Features
SSD form factor
The size of the solid-state drive, given in inches
M.2
SSD capacity
The Solid State Drive's data storage capacity.
500 GB
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
PCI Express 3.0
Memory type
Type of memory in the device e.g. DDR3, SRAM (Static RAM).
3D NAND
NVMe
NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Component for
What this product is used as a part of (component for).
PC
Hardware encryption
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
8 Gbit/s
Read speed
The speed at which a device can read data.
2400 MB/s
Write speed
The speed at which a device can write data.
1750 MB/s
Random read (4KB)
300000 IOPS
Random write (4KB)
240000 IOPS
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1700000 h
TBW rating
300
Features
Certification
UL, TUV, FCC, BSMI, CE, KCC, RCM, Morocco, VCCI and CAN ICES-3(B)/NMB-3(B)
Power
Power consumption (max)
The maximum amount of power used by the device.
3.9 W
Power consumption (average)
0.075 W
Power consumption (sleep)
0.05 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-55 - 85 °C
Operating shock
Environmental requirements for optimal protection from impact in operating mode
1500 G
Weight & dimensions
Width
The measurement or extent of something from side to side.
22 mm
Depth
The distance from the front to the back of something.
81 mm
Height
The measurement of the product from head to foot or from base to top.
2.38 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
6.5 g
